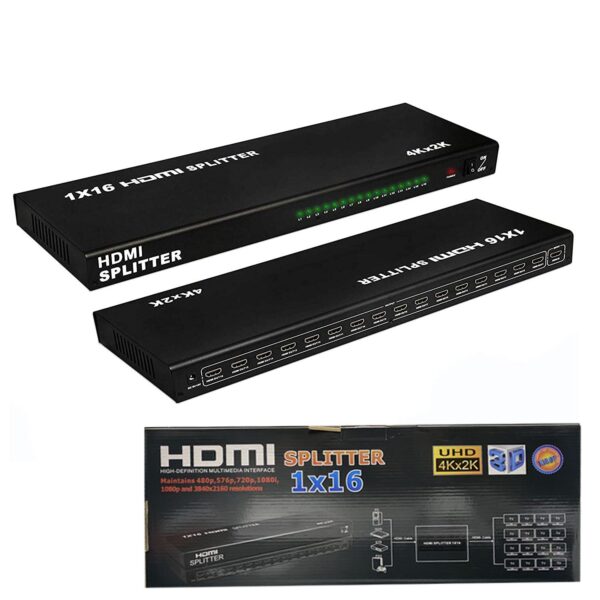

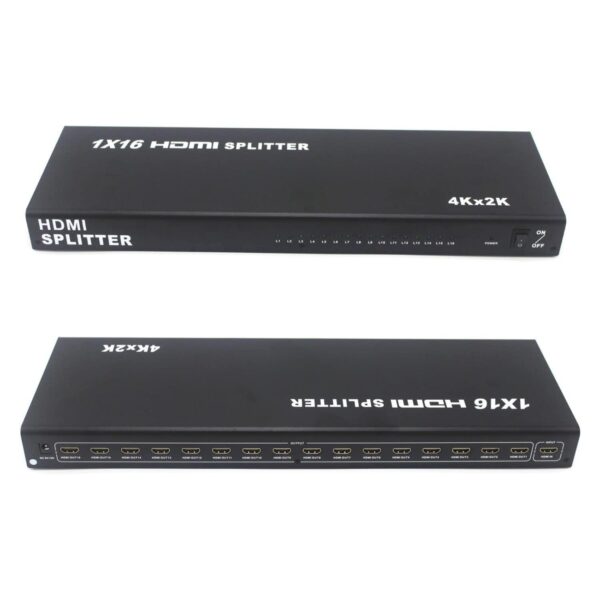

The 1×16 HDMI Splitter uses a single HDMI Source?accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to sixteen HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI Cable to regenerate the HDMI Signal. Resolution up to 3840X2160/30Hz.
Support Resolution up to 3840×2160/30Hz,Support HDMI 1.4b,Support 4K X 2K,Support 3D Video Format,Support 3.2Gbps Data Rate for TMDS Clock up to 320MHz,Support Deep Color 8/10/12bit,Support AWG26 HDMI standard cable.
When the resolution is 1080p and below, input up to 15 meters,output up to 25 meters. When the resolution is 4K, input up to 12 meters, output up to 15 meters.
Support displaying single source, multi-output high-definition signal source from DVD player A/V receiver, set-top box.
Based on 0 reviews
Be the first to review “HDMI Splitter 16 Port – 2K/4K”
Related products
-
All Item List, Splitter & Switches
Hdmi Range Extender Single Lan 120m
Features :
Auto Adjustment to Match Cable Length
Adjust the specifications automatically for different cable length 1-160m (10m 20m 30m 40m 50m 60m 70m 80m 90m 100m 110m 120m 130m 140m 150m 160m) to achieve the best display
1. Apply M-JPEG technology to process image compressing. The loss of image quality is very small;480i@50Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz 1080p@24Hz
2. Supported HDMI format: 480i@50Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz&1080p@24Hz
3. HDCP Compatible.
4. It can transmit HDMI 1080P signal to above 120m by using UTP Cat5e/6.
5. It can transmit by LAN.
6. Support LAN bandwidth: 100M
7. Extend 120m longer by adding one more Ethernet router.
8. The data could be & transmitted over switch, router, and other Ethernet devices, and extend the transfer & distance to over 20km.
9. It also could work in broadcast mode, like HDMI splitter, broadcast HDMI signal from of SENDER & support maximum of RECEIVER (over Switch)SKU: n/a -
-
All Item List, Splitter & Switches
HDMI Switch 2K 4K 5 Port
1. support HDMI-compatible 1.3. Full support for 1080p, support for 12-bit pixels.
2. support for video signal amplification up to: 2.5Gbps
3. intelligent switching and manual switching dual choice
4. support both ends of the 25-meter long-distance transmission (the specific length and wire-related)
5. compatible with HDCP equipment
6. support for high-definition video, high-quality and clear picture.SKU: n/a -
All Item List, Splitter & Switches
HDMI Switch 2K 4K 3 Port
Features:
Multifunctional in switching intelligent mechanical
Support full HD 4k*2k video resolution
Maintains high-resolution video – crisp and sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 4k*2k are easily achieved
Support 12bit deep color
Support 3D
High performance up to 3.4Gbps.
It features plastic construction, with the SELECT button for easy operation.Package includes
1 x 4K 3 in1out HDMI SwitchSKU: n/a
